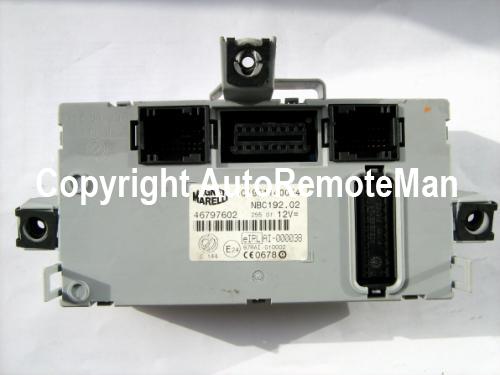

Software module 6 – Fiat, Lancia, Alfa Romeo, Maserati CODE2 with BSI Marelli
Memory device is Motorola MCU, which can be either MC68HC912DG128 or MC9S12DG256, both QFP 112 package.
You can read and write Motorola with TMPro, download connection diagram.
For MC68HC912DG128 expected file size is 2048 bytes, for MC9S12DG256 file size must be 4096 bytes.
Use Megamos Crypto or Silca T6 – JMA TP08 transponder.
Module also shows PIN code and transponder have to be matched with car.
Vehicles equipped with this unit:
Alfa Romeo: 147, GT
Fiat: Stilo(1999-2007), Palio(1999-), Idea
Lancia: Thesis, Ypsilon
Maserati: Quattroporte, Granturismo
